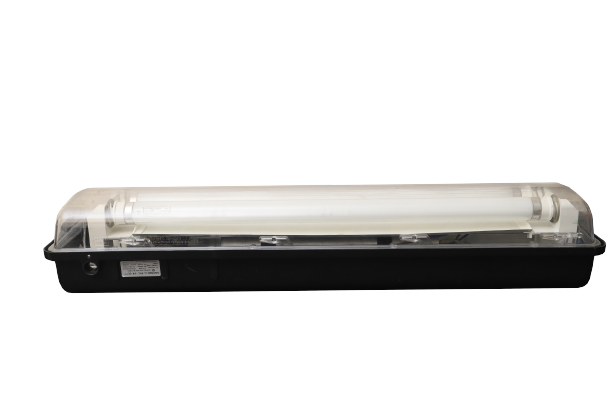

KEMEXEL-236

d  i  m  e  n  t  i  o  n  s  mm

 °Code                         A           A1           B           C             ballast              lamps NO.          supply         watt        class           Max surface temp C

KEMEEXEL-236         ۱۳۷۰       ۷۲۰         ۱۸۵        ۱۵۵      double channel            ۲                ۲۲۰/۲۴۰V          ۳۶           T4                         ۸۰°

Features

Body:                        Black shock and UV resistant fiberglass reinforced anti-static polyester resin
Diffuser:                    Transparent polycarbonate, shock and UV resistant  Sliding system operated by a hexagonal-head tool (for safety reasons, the fixture can not be opened without the tool)

Protected:                  opening system
Gasket:                      Acid/hydrocarbon resistant expanded silicone
Internal reflector:       White painted aluminum
Inner frame:              Extruded aluminum
Bolts and screws:       Stainless steel
Entries:                     ۴ x Ø۲۵٫۵ entries
Mounting:                  Nickel plated brass inserts with 2 x M8 holes
Internal reflector:       White painted aluminum

Electrical Features

Ballast:                      Ex electronic double channel(for fluorescent tubes)/Ex LED driver(for LED tubes)
Lamps:                      fluorescent tubes model T8,LED tubes(Ex e mb op)
Lamp holder:              Bi-pin G13
Rated voltage:            ۲۲۰/۲۴۰ V
Rated frequency:        ۵۰/۶۰ Hz
Power factor:              ۰٫۹۷
Safety:                       Internal “Ex m” safety switch
Wiring:                       Silicone rubber cables with glass braid insulation for high temperatures

Optimal performance at high (+50°C) and low temperatures (-40°C)
Suitable for fluorescent and LED tubes
 Zones 1, 2,21, 22
IP 66
Standards:                 EN 60079-0, EN 60079-1/7/18/28/31

Marking:                     Ex db eb mb IIC T6 Gb- Ex tb IIIC T85ºC Db
Ex db eb mb op is IIC T6 Gb-Ex op is tb IIIC T85ºC Db
